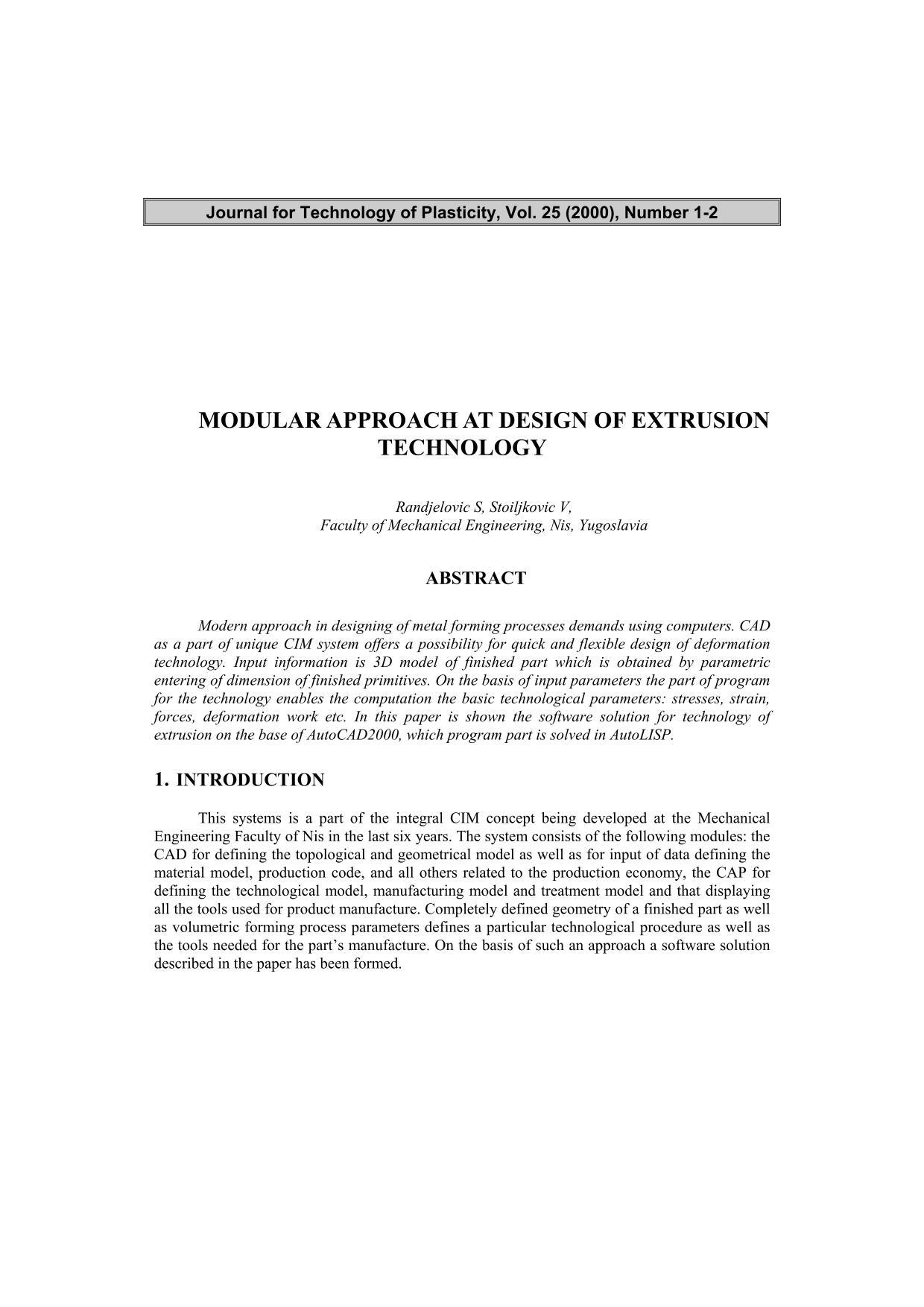

Modular approach at design of extrusion technology
Published 2000-12-22
This work is licensed under a Creative Commons Attribution 4.0 International License.
Abstract
Modern approach in designing of metal forming processes demands using computers. CAD as a part of unique CIM system offers a possibility for quick and flexible design of deformation technology. Input information is 3D model of finished part which is obtained by parametric entering of dimension of finished primitives. On the basis of input parameters the part of program for the technology enables the computation the basic technological parameters: stresses, strain, forces, deformation work etc. In this paper is shown the software solution for technology of extrusion on the base of AutoCAD2000, which program part is solved in AutoLISP.
